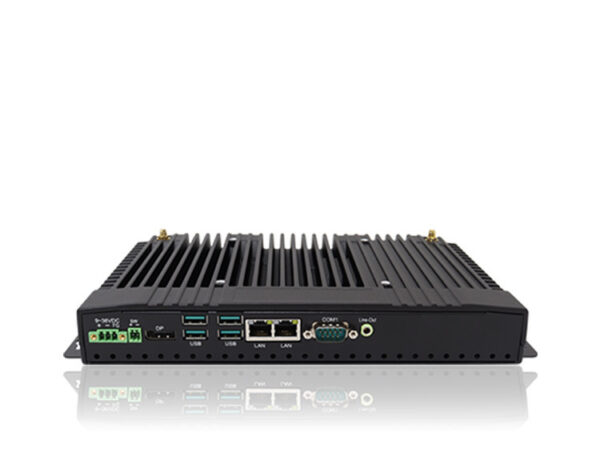

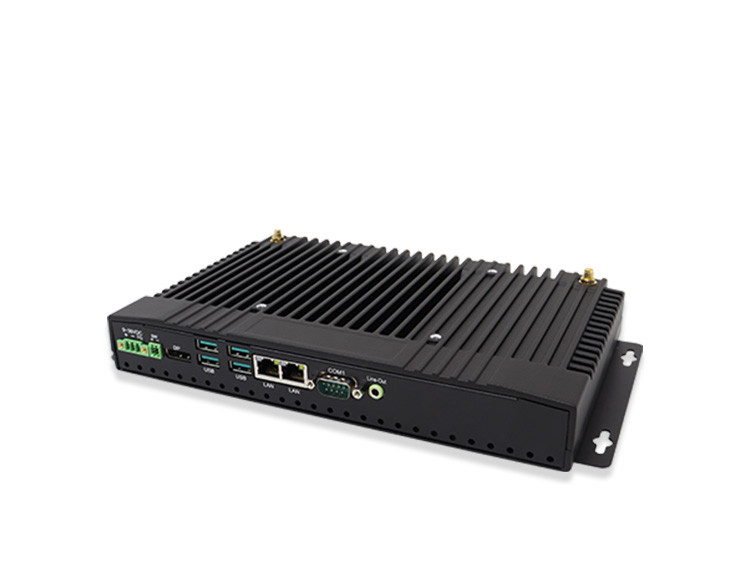

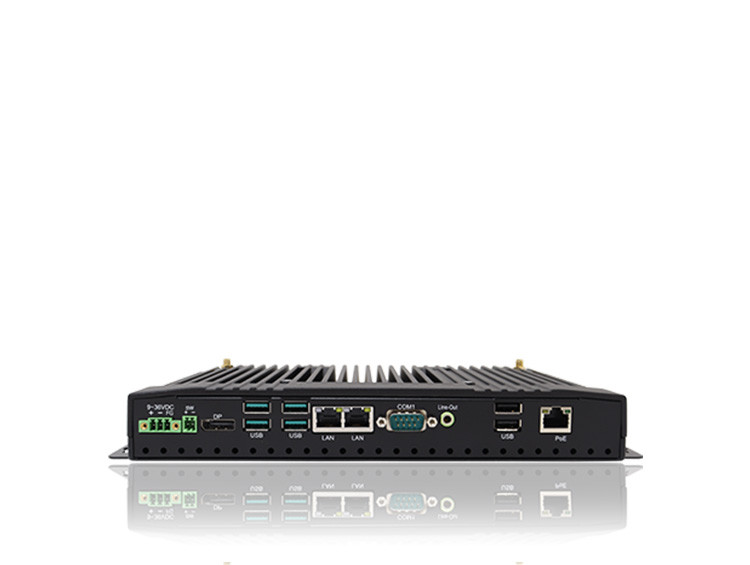

Industrial ruggedized Computer Series-TB5945

Processor

• 11th Gen Intel Core i series (e.g., Core i3-1115G4E, with a max frequency of 3.9 GHz and base frequency of 2.2 GHz).

Operating System Support

• Supports Windows 10 IoT / Windows 10 Pro / Windows 11 Pro.

Cooling Method

• Fanless passive cooling design (with aluminum heat sink and no fans).

Security

• Integrated TPM 2.0 security module.

Memory & Storage

• Memory: 2 × DDR4 SO-DIMM slots, supporting 4GB / 8GB / 16GB / 32GB / 64GB of memory.

• Storage: 1 × M.2 SATA3 2280 slot, supporting 256GB to 1TB SSD.

• Expansion: 1 × M.2 2230 Key E slot (for Wi-Fi module, etc.).

I/O Ports

• USB: 4 × USB 3.0.

• COM Ports: 2 × COM, COM1 supports RS-232, COM2 supports RS-232/422/485 (via Y-cable).

• Network: 1 × 2.5 GbE RJ-45, 1 × 1 GbE RJ-45.

• Video Output: 1 × DisplayPort 1.4 / HDMI combo port.

• Audio: 1 × 3.5mm audio output.

• Power Input: 9‑36 V DC.

Power & Environmental Requirements

• Max power consumption: 28W.

• Operating temperature range: ‑20°C to 60°C.

• Storage temperature range: ‑30°C to 70°C.

• Humidity range: 10%‑90% non-condensing (both operating and storage).

Enclosure & Dimensions

• Material: Aluminum alloy, black color.

• Mounting: VESA 100 compatible.

• Dimensions: 252.7 mm × 158.7 mm × 36 mm.

• Weight: 1.05 kg.

Additional Features

• Optional Wi-Fi 6, Bluetooth 5.1.

• Optional Nano-SIM card slot.

Use Cases

• The fanless design and durable aluminum enclosure make it ideal for environments with dust, vibration, or harsh conditions (such as factory floors or warehouses).

• Wide temperature and humidity working ranges make it suitable for various industrial applications.

• A rich I/O configuration supports integration with industrial devices (like sensors, actuators) and networks.

• The 2.5 GbE network port and strong processing power are ideal for edge computing or machine vision applications.

• VESA mounting support allows flexible installation on walls or behind displays.

Considerations

• The base configuration uses a Core i3 (1115G4E); for higher performance, consider upgrading to a Core i5 or i7.

• Storage is limited to one M.2 SATA3 slot (not NVMe), which might constrain performance.

• The compact form factor (only 36mm thick) is great for saving space but may limit expandability (although there is an M.2 E-key slot for Wi-Fi modules, etc.).

• If using in Europe/Finland, check power adapter compatibility and local shipping/warranty conditions.
