MAIN FEATURES:
1) Processor
2) Start time 3 seconds, fast start speed
3) Built in Refan development toolkit, easy and simple secondary development
4) Directly communicate with PLC to control various devices
5) User's application software and product hardware can be customized
MODEL:
| specifications | 6.4 inch touch screen | 8.4 "touch screen | 10.4 inch touch screen |
| screen size | 6.4 inches | 8.4 inches | 10.4 inches |
| resolution | 640*480 | 640*480（800*600） | 640 * 480 (800 * 600, 1024 * 768) |
| brightness | 250cd/m2 | 250cd/m2 | 250cd/m2 |
| CPU | Main frequency 1GHz | Main frequency 1GHz | Main frequency 1GHz |
| USB port | 2 port | 2 port | 2 port |
| CAN port | 2 port | 2 port | 2 port |
| Network port | 1 port | 1 port | 1 port |
| Serial port | 2 port | 2 port | 2 port |
| power waste | ≦10W | ≦10W | ≦10W |
| Power Supply | DC 9～36V | ||
| system configuration | Refan Intelligent Application Development Kit | ||
Environmental Indicators:
| Working temperature: | -40℃-+60℃;-20℃-+55℃;0℃-+50℃; |
| Storage temperature: | -40 ℃~+70 ℃ |
| Environmental adaptability: | MIL-STD-810 |
| Electromagnetic compatibility: | MIL-STD-461 |
Standard size:
| External dimensions（mm） | 185*150*45 | 240*185*45 | 280*210*45 |
| Installation size（mm） | 173*116 | 228*151 | 245*176 |

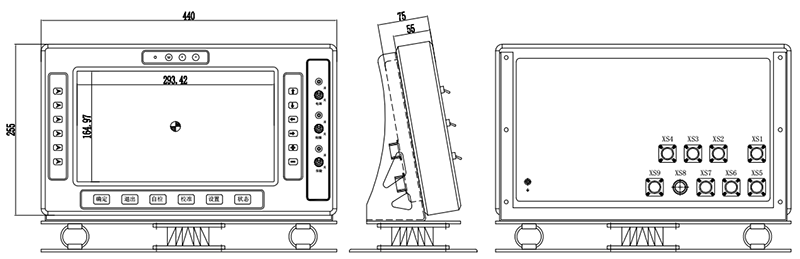

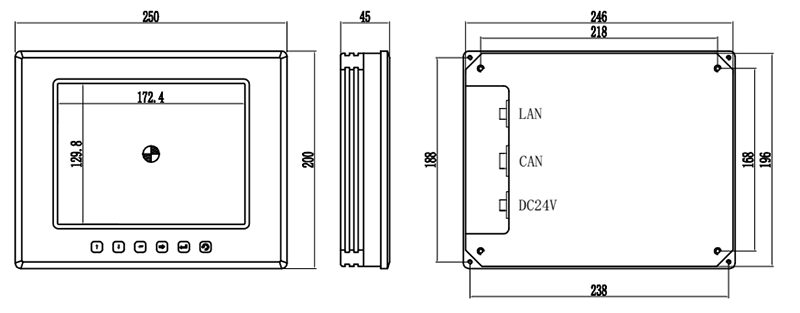

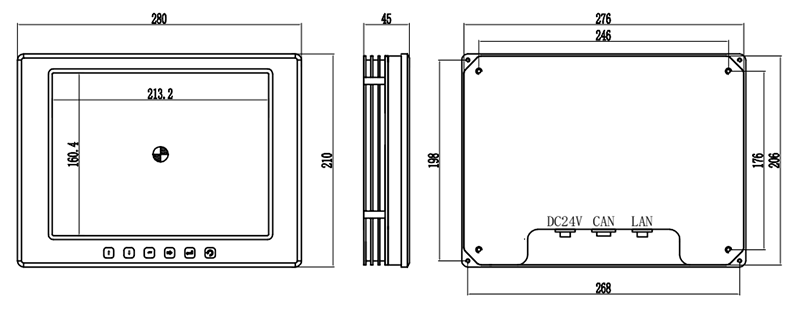

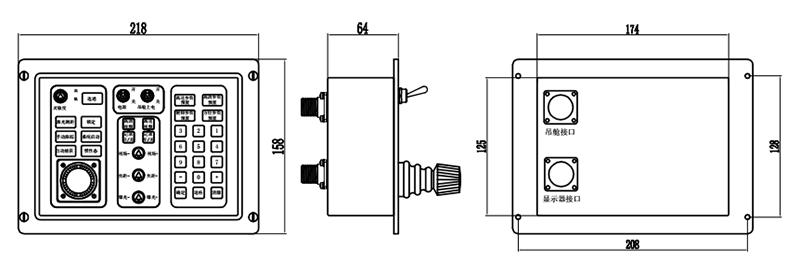

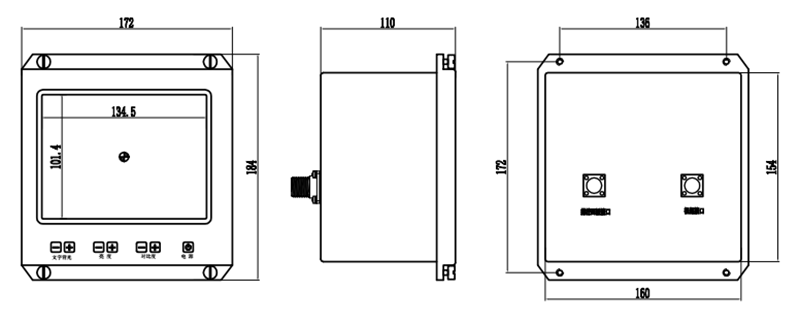

Customized size chart:
Rugged touch screen/RFT-T0104GJ
Rugged touch screen/RFT-T084GJ
Rugged touch screen/RFT-CKH
Reinforced touch screen/RFT-T064GJ
Rugged touch screen/RFT-T133GJ
