MAIN FEATURES:
1) Processor
2) Supports Linux and Vxworks operating systems
3) Lightweight and portable structure, capable of carrying lithium batteries
4) User's application software and product hardware can be customized
MODEL:
| specifications | 15.6 "portable device | 15.6 "three screen portable computer |
| screen size | 15.6 inches | 15.6 inches * 3 |
| resolution | 1920*1080 | 1920*1080 |
| brightness | 300cd/m2 | 300cd/m2 |
| CPU | Main frequency 1.91GHz, quad core/2.4GHz, six core | 2.4GHz, six core |
| Memory | 16GB | 16GB |
| Electronic hard drive | 1TB | 1TB |
| USB port | 6 port | 6 port |
| CAN port | 2 port | 2 port |
| Network port | 4 port | 4 port |
| Serial port | 4 port | 4 port |
| External display port | VGA/HDMI/DP | Three routes stand out alone, HDMI/DP |
| power waste | ≦40W | ≦60W |
| weight | ≦5kg | ≦8kg |
| Power Supply | AC 220V±10%/DC 9～36V(with battery) | |
| operating system | Windows、Linux | |
Environmental Indicators:
| operation temperature | -40℃-+60℃;-20℃-+55℃;0℃-+50℃; |
| storage temperature | -40℃～+70℃ |
| Environmental adaptability | MIL-STD-810 |
| electromagnetic compatibility | MIL-STD-461 |
Standard size:
| External dimensions（mm） | 400*295*60 | 1230*320*80 | 470*370*120 |
Standard size drawing:

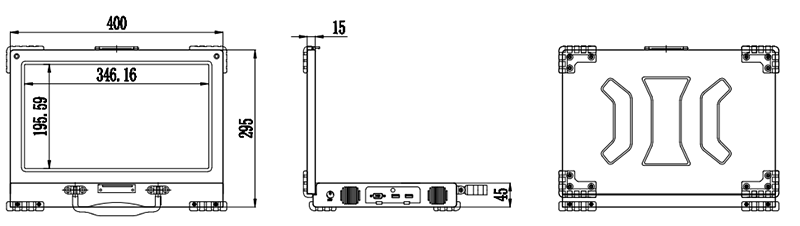

Rugged portable machine RFP-T156D

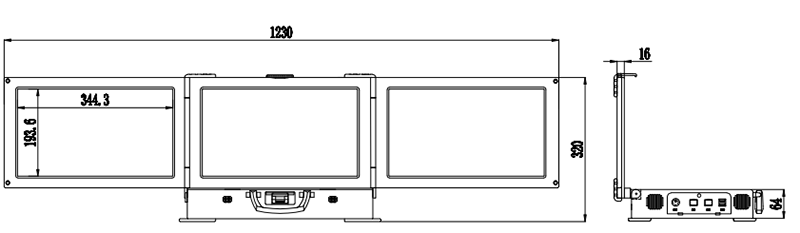

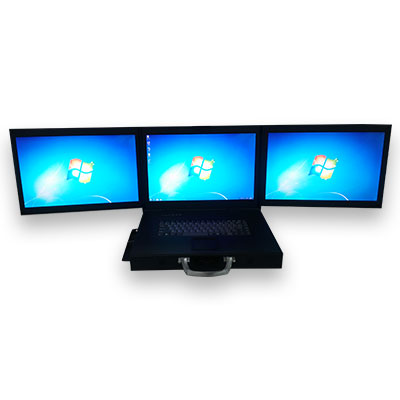

Rugged three screen portable machine RFP-T156D-3P

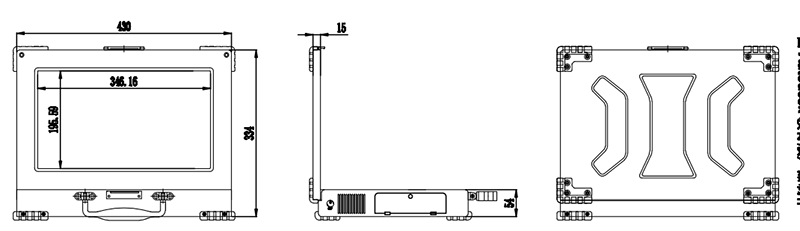

Customized size chart:
Rugged portable computer/RFP-G156D
